Final Crysis Environment (Images + dropbox link)

5 Images



My Environment & Yushan National Park





 View of the entrance & elevator





 Folly & Bridge





 View from the Student Meeting Place





Library on the left, staff offices on the right







Additional Images







 Top Views





 Gallery

Lecture Theatre, Library





Elevator & Folly



 Video of the elevator









Dropbox Link

https://www.dropbox.com/sh/x20kgf7bxnfrpd4/c_4tXHpFcU



THANKS STEPHEN FOR BEING AN AWESOME TUTOR!
ALL THE BEST AND GOD BLESS :)


Plan + sketchup photos

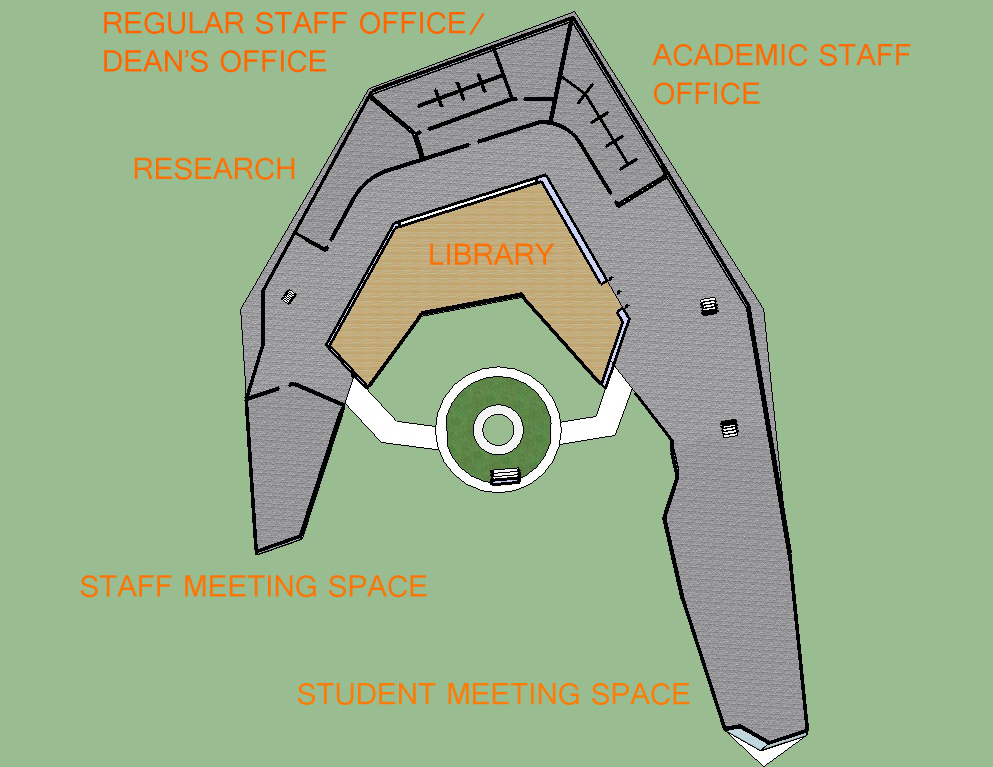

First Floor Plan



Second Floor Plan

Couple of things were considered in the planning of the building.

First, I wanted a transition of public/casual to private/formal as you move towards the centre/front of the building. Hence on the two outer edges (the most outer part), I placed the two meeting spaces which I thought were the most public and casual spaces. And in the very centre (or front) is the offices and classrooms.

Also I wanted to separate the student areas from the staff areas, and yet maintain a good 'flow' and circulation within the building. So I placed all the staff offices/research lab in the first floor, and the classrooms, comp labs and lecture theatre upstairs.

And through the use of two sets of stairs and by joining the two ends on first floor using the entrance/elevator area, I was able to obtain a doughnut-shaped circulation in both first and second floor.

Front View (lecture, classrooms, offices, gallery)




Side View





Top View (Bridge Walkway)



Rear View



Student Meeting Space



Library and Computer Lab



18 Perspectives

top left: authority, imposed

top middle: diversity, monumental, mass

tope right: coherent, centripital, velocity

bottom left: light, sharp

bottom middle (left): structural, systemmatic, hybrid

bottom middle (right): exposed, private, rigid

bottom right: extrude, interlocking

link to sketchup model + peer feedback

bridge
http://sketchup.google.com/3dwarehouse/details?mid=6bd7531a5c79d01cfd4a20a2b12ce0c7&prevstart=0

Cryengine Problems! :(

1. At first, after importing my sketchup model to cryengine, my person couldn't stand on the building (i.e. falls through my surface)

2. A day later, I can't even import my sketchup to cryengine. Hence I can't put in my final model (basically the same as the one in the photo, but with textures).
Worst case scenario, I would have to show my final model with textures through sketchup, and use the draft one in cryengine

36 moving textures (exp3)

School design brainstorm 1

                                            Plan of a temple in India

                                          (changed into a section)
                                          Space becomes more private as you go into the centre of the building
